Datenblatt

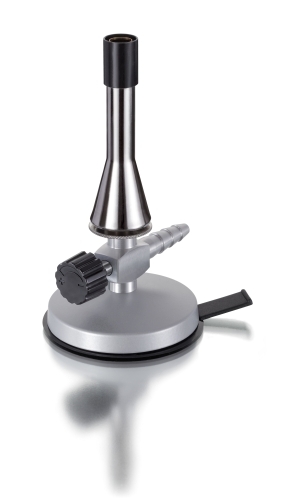

Teclubrenner mit Nadelventil, für Propan, Standard

Artikel-Nr.: 32170-16

Unknown

Funktion und Verwendung

Teclubrenner für Propangas, Standard.

Vorteile

Einfache und optimale Einstellung der Luftzufuhr über Rändelschraube
Optimale Gaszufuhr / -regulierung durch Nadelventil

Ausstattung und technische Daten

Brennerrohr aus vernickeltem Messing
Fuß aus lackiertem Grauguss
Kopfdurchmesser: 17 mm
Höhe: 165 mm
Luftregulierung
Nadelventil für Gasregulierung

Zubehör

Empfohlenes Zubehör zur Erhöhung der Standfestigkeit: Haftfuß für Bunsen- und Teclubrenner ( 32160-00).
